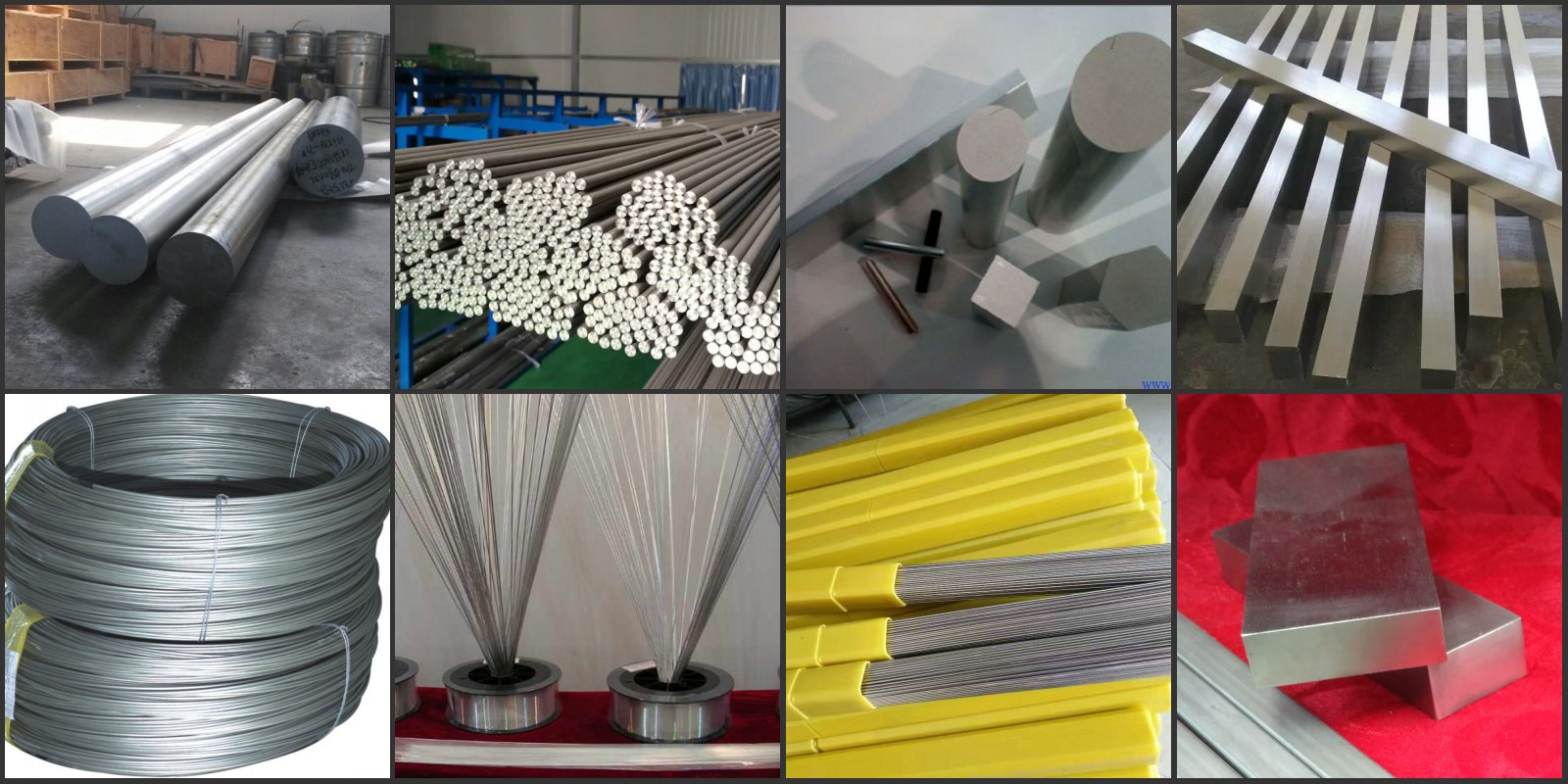

Titanium bar

Future titanium offers different shapes of titanium bars and rods, like round , square, hex, and other OEM shape according to drawing. The titanium bars and titanium rods are available in most of the almost 40 grades , while the most popular grades are GR1, 2,3,4,5, 7,9,11,12,23. They are used to be made into many products in aerospace, medical, chemical,jewelry, camping, daily life, etc.

Commercial：	titanium bars and rods
Shape：	round, square, hex, OEM shape according to drawing
Standard：	ASTM B348/SB348, ASTM B/SB 381, ASTM F67, ASTM F136, ISO5823, AMS4828 etc.
Grades：	GR1、GR2、GR3、GR4、GR5、GR7、GR11、GR12、GR23, etc.
Condition	annealed

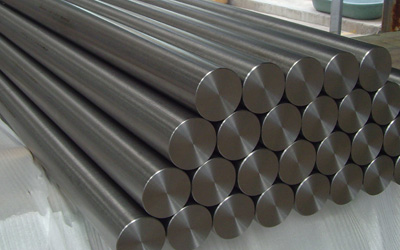

Titanium round bars/Titanium rods / Titanium wire
Round bar is made from very small diameters of wire for welding, all the way up to larger diameters (such as the 14″ diameter), used for clutch and flywheels.The medical field often uses small-diameter round bar for body implantable fasteners and dental appliances.--

Diameter :	0.1mm up to -350mm
Length:	20-6000mm for rods and bars, 0.1kgs-100kgs /coll for wires

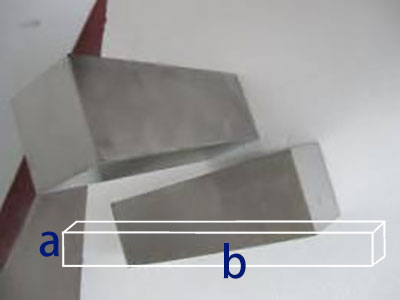

Titanium square bars and rods

Titanium square bars have the square side. The most popular grade is GR2, GR3, GR4, GR5.

Available sizes:

a: 4mm up to 450mm

b: 50mm up to 6000mm

Popular sizes: a*a* b 6*6*b 8mm*8mm*b 10mm*10mm*b 12mm*12mm*b 16mm*16mm*b

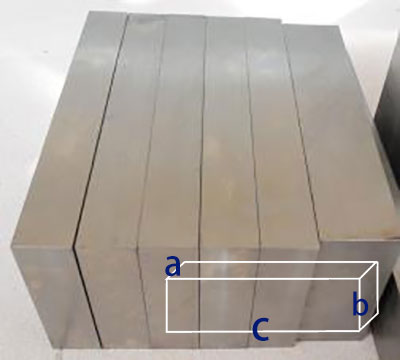

Titanium rectangle / cuboid bars

Available grades: GR 1,2,3,4,5,7,9,12,23 Available sizes:

a: 20mm up to 350mm

b: 40mm up to 450mm

c: 80mm up to 800mm

Titanium hex bars
Available grades: GR 1,2,3,4,5,7,9,12,23 Sizes: make to order

Feature of titanium bar/rod/wire

• High strength;

• Fine corrosion resistance;

• Low density, light weight;

• high/low temperature resistance;

• High resistance to strong acid.alkali.

Mill Test Certificate(MTC) along with the product, including chemical composition, physical property, dimentional inspection, visual inspection, micro structure, DPI inspection, etc.
