Titanium pipe and titanium tube are light, corrosive and with high strength. It is widely used used as heat exchange equipment, condenser, evaporator and pipelines. Titanium copper clad tubes/pipes are also used for oil industry.



Size of titanium tube/ titanium pipe

• Capillary tube: OD: 0.8-4.0mm, Thickness: 0.05-1.0mm, Length: 10.0-1500.0mm
• Common tube: OD: 4.1-160.0mm, Thickness: 0.5-8.0mm, Length: 10.0-13000.0mm

Application of titanium tube/ titanium pipe

• Heat exchangers and condensers
• All kinds of corrosive fluid transmission pipeline system
• Titanium bicycle tube, automobile exhaust pipe
• Offshore aquaculture

Description about Titanium grades

Titanium Grade 1-4 is pure Titanium, the other grades are alloys. Pure Titanium is used due to its high corrosion resistance, the alloys because of the extremely high strength to weight ratio.

• Grade 1. Pure Titanium, relatively low strength and high ductility.
• Grade 2. The pure titanium most used. The best combination of strength, ductility and weldability.
• Grade 3. High strength Titanium, used for Matrix-plates in shell and tube heat exchangers.
• Grade 5. The most manufactured titanium alloy. Exceedingly high strength. High heat resistance.
• Grade 7. Superior corrosion resistance in reducing and oxidizing environments.
• Grade 9. Very high strength and corrosion resistance..
• Grade 12. Better heat resistance than pure Titanium. Applications as for Grade 7 and Grade 11.
• Grade 23. Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for surgical implant Applications.

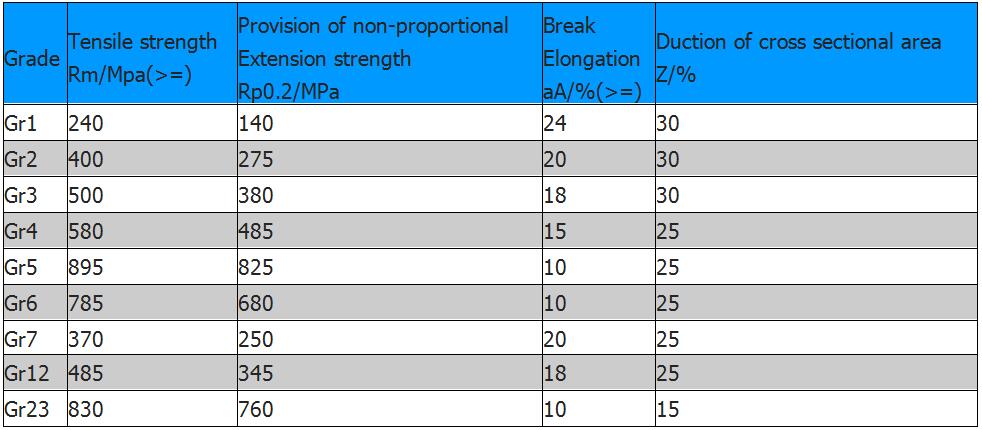

Mechanical properties in room temperature

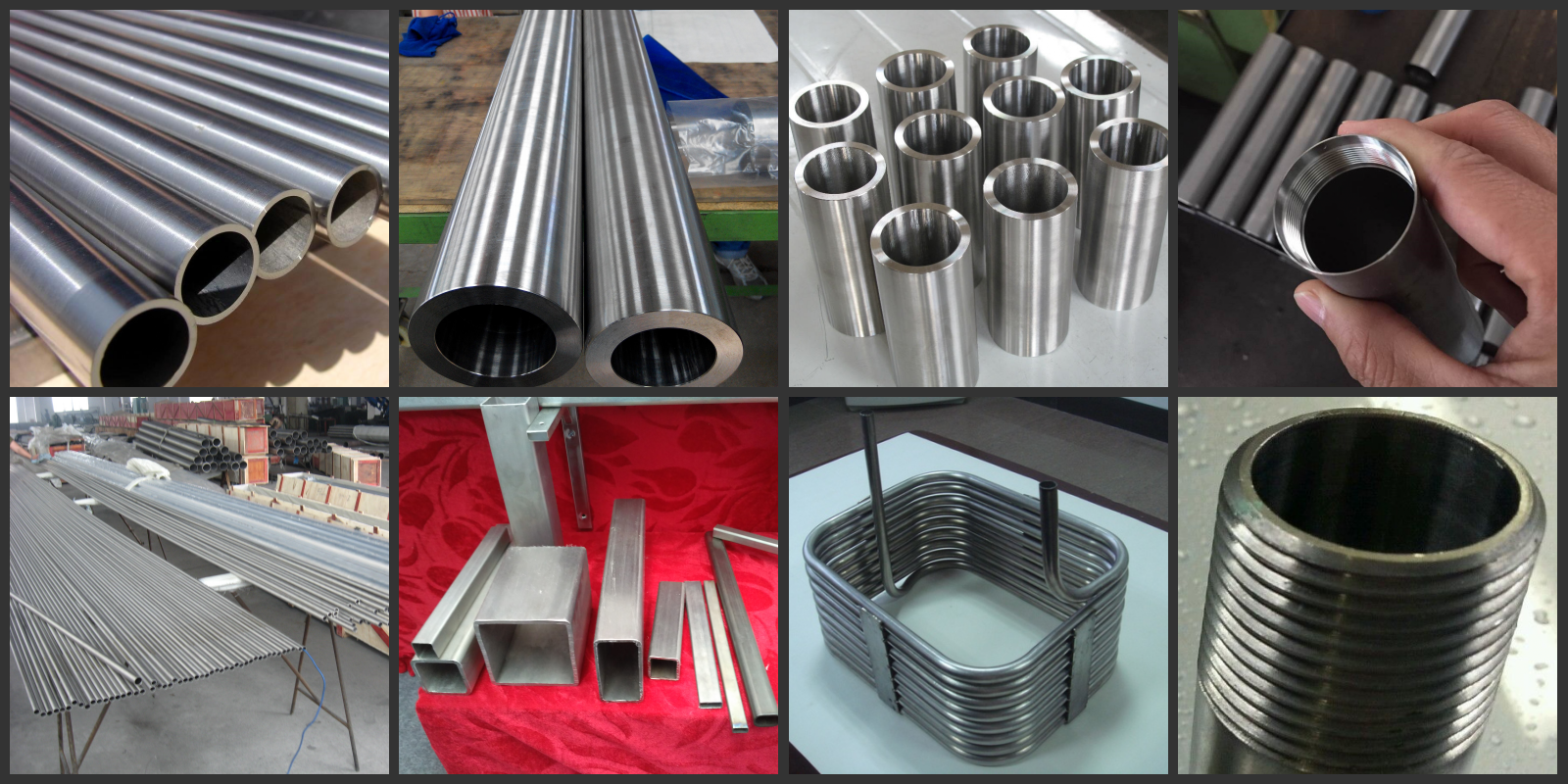

We can also supply titanium U-tubes and other shapes of Titanium Tubes & Pipes, please don’t hesitate to contact us if you have any question or requirement.
